Carburettor overhaul kit
Full
SKU
FUA35001G-1
Good stock
£62.40
£52.00
You might also need
Check parts to add to the basket or
OIA11071-1
Carb, intake and throttle body cleaner
500ml
Universal part
Universal parts can be fitted to various motorcycles so we can't guarantee this will fit yours, some modifications or additional parts may be required
£9.60
£8.00

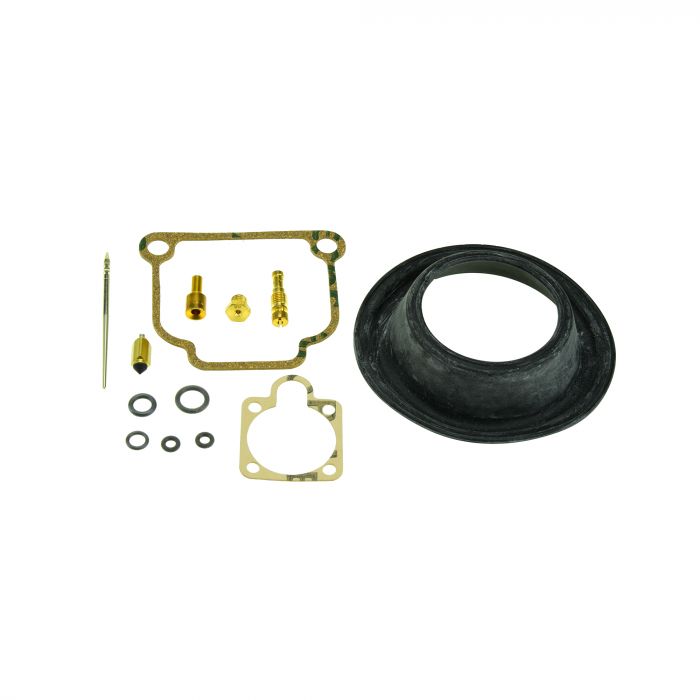

The kit contains all rubber parts, gaskets, jets, needles and float needle retaining clip for one carb. The rubber parts in the kit are made from Viton which is ethanol resistant.
Please note, the jets and needles supplied in this kit are as per the original carb specifications.
This kit covers the following carb numbers (If you are not sure of the carb numbers, these can be found on the main body of the carb) :-
94/40/103 Left hand
94/40/104 Right hand
The kit comprises :-
- FUA35301 Main jet 170 (1)
- FUA35318 Float needle (1)
- FUA35320 Float needle retaining clip (1)
- FUA35321 Slide needle (1)
- FUA35774 Diaphragm (1)
- FUA36924 Idle jet 45 (1)
- FUA54735 Idle/pilot jet O ring (2)
- FUA54739 Throttle shaft O ring (1)
- FUA54764 Float bowl gasket (1)
- FUA56353 Choke cover gasket (1)
- FUA57812 Mixture tube O ring (1)
- FUA57819 Choke shaft O ring (1)
- FUA61702 Needle jet 2.66 (1)
| Weight | 0.025000 |
|---|---|
| Universal Part | No |
| Condition | New |
