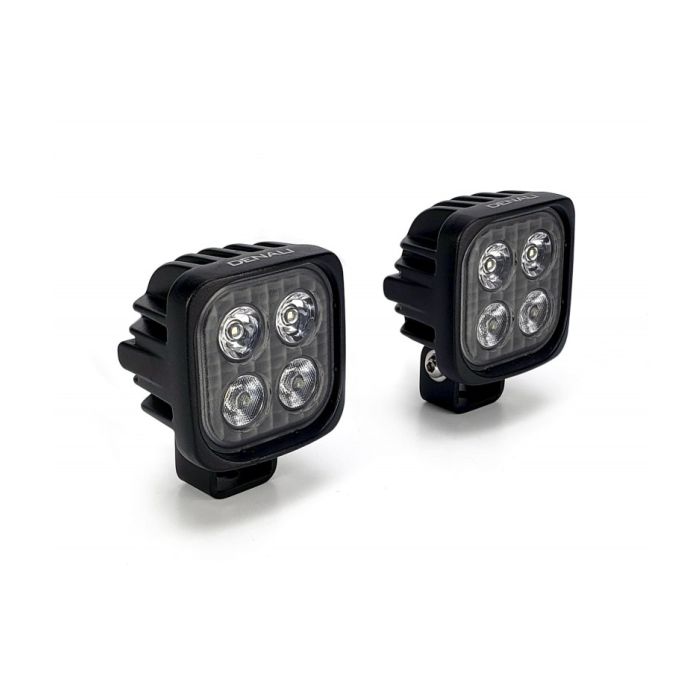

The DENALI S4's fixed lens features two flood optics and two spot optics to create the ultimate hybrid beam pattern; a super wide close-range flood and a piercing spot beam in one housing. Consistent with D-Series lights, the S4 features DENALI’s innovative DataDim™ Technology that enables the lights to be upgraded in seconds to dual intensity by connecting a plug-n-play DataDim™ Controller that will automatically switch the lights between half and full intensity with your vehicle's original high beam switch.

Features:

High-Intensity Series Cree LEDs outputting 7665 lumens per pod
DrySeal™ Submersible Waterproof light can withstand the most extreme environments
LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
Low profile mounting bracket with stainless steel hardware included

Specifications:

LEDs: (8) 7-Watt Cree XPL HI
Power Draw: 4.6 Amps
Beam Distance: 540 Feet
Beam Width: 100 Feet
Raw Lumens: 6132
Intensity: Single Intensity Harness
DataDim™ Compatible: Yes
Operating Voltage: 12 VDC
Pod Size: 2.75in square x 1.75in deep
IP67 Waterproof & Submersible

What’s In The Box?

(2) LED Light Pods
(1) HotSwap™ Single Intensity Wiring Harness
(2) Hinge Mounts with M8 Stainless Steel Hardware
(4) Zip Ties & (1) Adhesive Mounting Square

Important Fitment Notes:

*Upgrading to dual intensity with stock LED headlight is not possible with this kit. Premium wiring harness will be needed (along with the dual intensity controller) to make dual intensity work with stock LED headlight.

*This kit comes with only one integrated switch option. If you wish to use a 3-position switch or switch eliminator plug you must upgrade to the premium wiring harness for compatibility.

*S4 LED Light Pods are available individually for those wanting to use the premium wiring harness.
